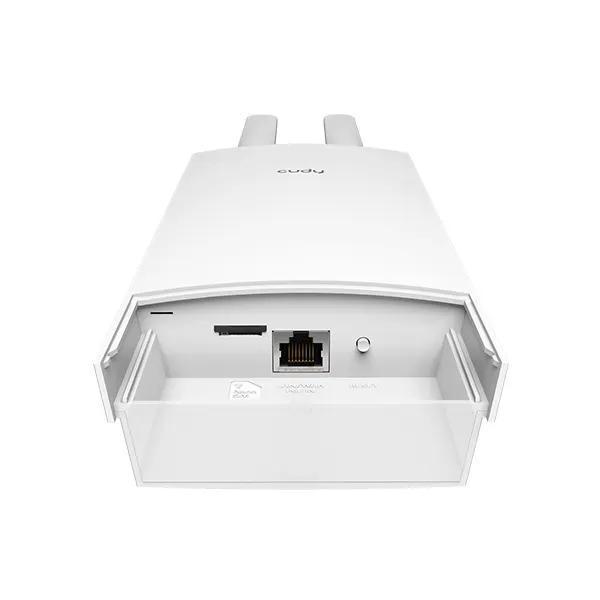

Cudy LT500 Outdoor 4G AC1200 Wi-Fi Router

Description

Key Features & Specifications of Cudy LT500 Outdoor 4G AC1200 Wi-Fi Router

Key Features:

1. IP65-rated, 4kV Surge
2. 4G Cat. 4 with Max 150Mbps DL
3. 4-Stream Dual-Band Wi-Fi 5
4. 867 Mbps + 300 Mbps Wi-Fi
5. 1× Fast Ethernet Port (PoE In)
6. 1× Nano SIM Slot
7. 50 Connected Devices
8. 24V Passive PoE
9. Cudy Mesh, VPN Server & Client
10. Cudy App, Cloud Control

Specifications:

1. Version: LT500 Outdoor 1.0
2. CPU: 580 MHz Single-Core, MIPS24KEC
3. Flash/ROM Storage: 16 MB (128 Mbit) NOR
4. DDR/RAM: 128 MB (1 Gbit) DDR2
5. Cellular Standards: 4G Cat. 4
6. Cellular Antennas: 2× Detachable
7. Detachable Cellular Antennas Connector: SMA Female
8. SIM Options: 1× Nano SIM Slot
9. Available Versions: EU, US, LA
10. 5 GHz Wi-Fi Speed: 867 Mbps
11. 2.4 GHz Wi-Fi Speed: 300 Mbps
12. 5 GHz Wi-Fi Streams: 2 Spatial Streams
13. 2.4 GHz Wi-Fi Streams: 2 Spatial Streams
14. Wi-Fi Antennas: 2× Internal
15. Beamforming: Yes
16. FEM or PA/LNA: 5GHz: 2× Internal | 2.4GHz: 2× Internal
17. Range Performance: Max: 170m (558 ft) | Park: 150m (492 ft) | Street: 50 m (164 ft) | Woods: 30m (98 ft)
18. Physical Buttons: Reset Button
19. 10/100Mbps RJ45 Port: 1
20. Ethernet Notes: Accepts PoE powering
21. LED: System | Internet | LAN | Wi-Fi | Cellular Signal Strength
22. Power Interface: PoE via Ethernet Port
23. Power Methods: Passive PoE
24. Power Adapter Input: 100-240V, 50/60Hz
25. Output: 24V=Passive PoE
26. Max Power Consumption: 10W
27. Idle Power Consumption: 5W
28. IP65 Protection
29. Operating Temperature: -20 to 60℃
30. Extend Operating Temperature with Industrial Grade SIM Card: -40 to 65 ℃
31. Storage Temperature: -40 to 70 ℃
32. Operating Humidity: 0% to 100% non-condensing
33. Storage Humidity: 5% to 90% non-condensing
34. Installation: Wall Mount | Pole-mount
35. Wi-Fi Standards: Wi-Fi 5
36. Max Wi-Fi Modulation: 256-QAM
37. Wi-Fi Efficiency: MU-MIMO
38. Wi-Fi Efficiency Note: MU-MIMO on 5GHz
39. Max Capacity: 128
40. Recommended Client Upper Limit: 50
41. Max Wi-Fi Channel Width: 80 MHz
42. Wi-Fi Security: WPA/WPA2/WPA3
43. Guest Network: 2.4GHz, 5GHz
44. WPS: Yes
45. Operation Modes: Cellular Router | Wi-Fi Router | WISP
46. Mesh: Cudy Mesh Main
47. Mesh Backhaul: Wireless Backhaul | Wired Backhaul
48. Cellular Mode: 4G Only | Auto
49. WAN Mode: DHCP | Static IP | PPPOE
50. Internet Failover Sequence: WAN | WISP | Cellular
51. IP Versions: IPv4/IPv6
52. Reliability: Timed Reboot | Backup & Restore
53. Charts: Mesh Topology | Cellular Speed | Internet Speed | WISP Speed | Wi-Fi Speed
54. Certifications: FCC, CE
